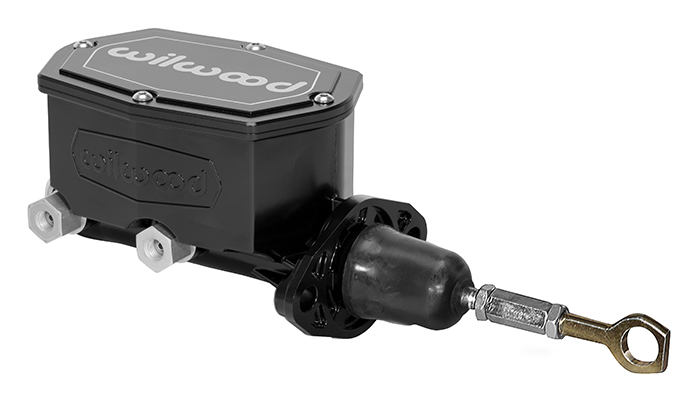

COMPACT TANDEM M/CYL, MUSTANG BLACK 1-1/8 BORE
$642.02
Optimize braking efficiency with the Wilwood Compact Tandem Master Cylinder, engineered to deliver precise hydraulic control for enhanced vehicle safety. Its 1-1/8 inch bore size ensures balanced brake pressure, providing consistent stopping power in a compact design measuring just 34.3 cm in length. Perfect for applications requiring reliable performance in limited space, this master cylinder combines durability with exacting dimensions for seamless integration.
Estimated arrival at CMP: 7-10 days.
After arriving at CMP the item will be shipped the same day or made available for collection.
*Image(s) for illustrative purposes only
Did you like this product? Add to favorites now and follow the product.
Description
Wilwood’s Compact TandemMaster Cylinder for Mustangs comes with the correct pushrod; 4 bore sizes; 7/8″ through 1-1/8th and is available in 2 finishes ball burnished, and black e-coat. These master cylindersare designed primarily for manual applications and include the correct pushrod for the factory 64-72 brake pedal. They’re designed formount flanges from 3.22″ to 3.40″, which match the64-72 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10″ with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OEtype master cylinders.
Additional information
| Weight | 8.0000 kg |
|---|---|
| Dimensions | 34.30 × 13.00 × 13.80 cm |
| Category list | |
| Brand | Wilwood |
