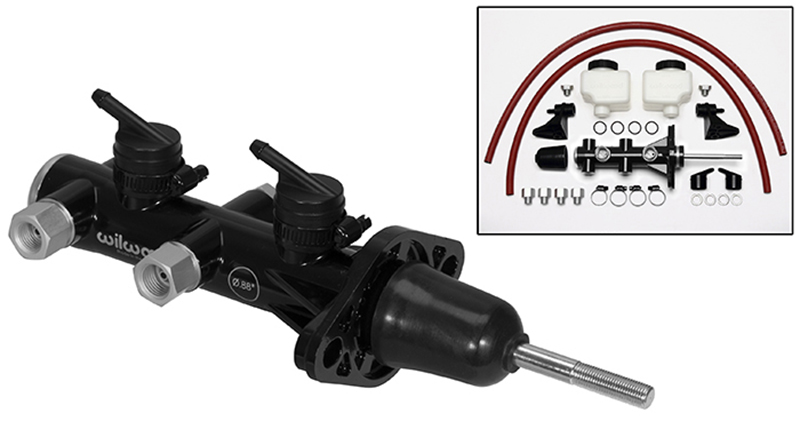

COMPACT TANDEM REMOTE MASTER CYLINDER, 1.0″ BORE, BLACK
$598.12
Optimize your brake system’s hydraulic control with the Compact Tandem Remote Master Cylinder featuring a precise 1.0″ bore size for consistent pressure delivery. Its compact dimensions (34.30 cm length) allow flexible installation in tight spaces without compromising performance. Discover how Wilwood’s engineering enhances brake responsiveness and reliability.
Estimated arrival at CMP: 2-3 days.
After arriving at CMP the item will be shipped the same day or made available for collection.
*Image(s) for illustrative purposes only
Did you like this product? Add to favorites now and follow the product.
Description
Wilwood’s new Remote TandemMaster Cylinder w/ Pushrod is available in 4 bore sizes 7/8″, 15/16″, 1.00″ and 1.12″ and in two finishes: ball burnished and black e-coat. They’re designed for mount flanges from 3.22″ to 3.40″, common measurements for most domestic cars and trucks from the mid-1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.12″ with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OEtype master cylinders. We alsooffer our combination proportioning valve kit, whichincludes brackets and stainless lines specifically for use with these master cylinders, see PN 260-14248 for a retrofit kit.
Additional information
| Weight | 1.4400 kg |
|---|---|
| Dimensions | 34.30 × 13.00 × 13.80 cm |
| Category list | |
| Brand | Wilwood |
