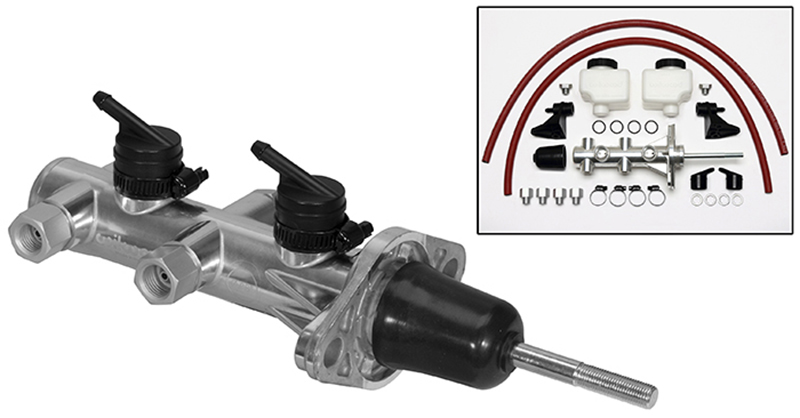

COMPACT TANDEM REMOTE MASTER CYLINDER, 7/8″ BORE, POLISHED
$634.75
Enhance braking precision with the Compact Tandem Remote Master Cylinder, designed to deliver consistent hydraulic pressure for safer stops. Its 7/8″ bore size ensures optimal fluid displacement for responsive pedal feel. Crafted by Wilwood and weighing just 1.56 kg, it offers reliable performance without adding excess weight—ideal for high-demand braking systems.
Estimated arrival at CMP: 2-3 days.
After arriving at CMP the item will be shipped the same day or made available for collection.
*Image(s) for illustrative purposes only
Did you like this product? Add to favorites now and follow the product.
Description
Wilwood’s new Remote TandemMaster Cylinder w/ Pushrod is available in 4 bore sizes 7/8″, 15/16″, 1.00″ and 1.12″ and in two finishes: ball burnished and black e-coat. They’re designed for mount flanges from 3.22″ to 3.40″, common measurements for most domestic cars and trucks from the mid-1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.12″ with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OEtype master cylinders. We alsooffer our combination proportioning valve kit, whichincludes brackets and stainless lines specifically for use with these master cylinders, see PN 260-14248 for a retrofit kit.
Additional information
| Weight | 1.5600 kg |
|---|---|
| Dimensions | 34.30 × 13.00 × 13.80 cm |
| Category list | |
| Brand | Wilwood |
