STRANGE 2PC RH L/W SLOTTED 10″ROTOR ASSEMBLY RH / 1″ OFFSET
$655.16
Enhance braking performance with the Strange 2-piece slotted rotor assembly engineered for precise heat dissipation and reduced brake fade. Its 10-inch diameter and 1-inch offset optimize fit and compatibility for reliable stopping power. Designed to improve control under demanding conditions, this rotor assembly ensures consistent, responsive braking.
Estimated arrival at CMP: 2-3 days.
After arriving at CMP the item will be shipped the same day or made available for collection.
Did you like this product? Add to favorites now and follow the product.
Description

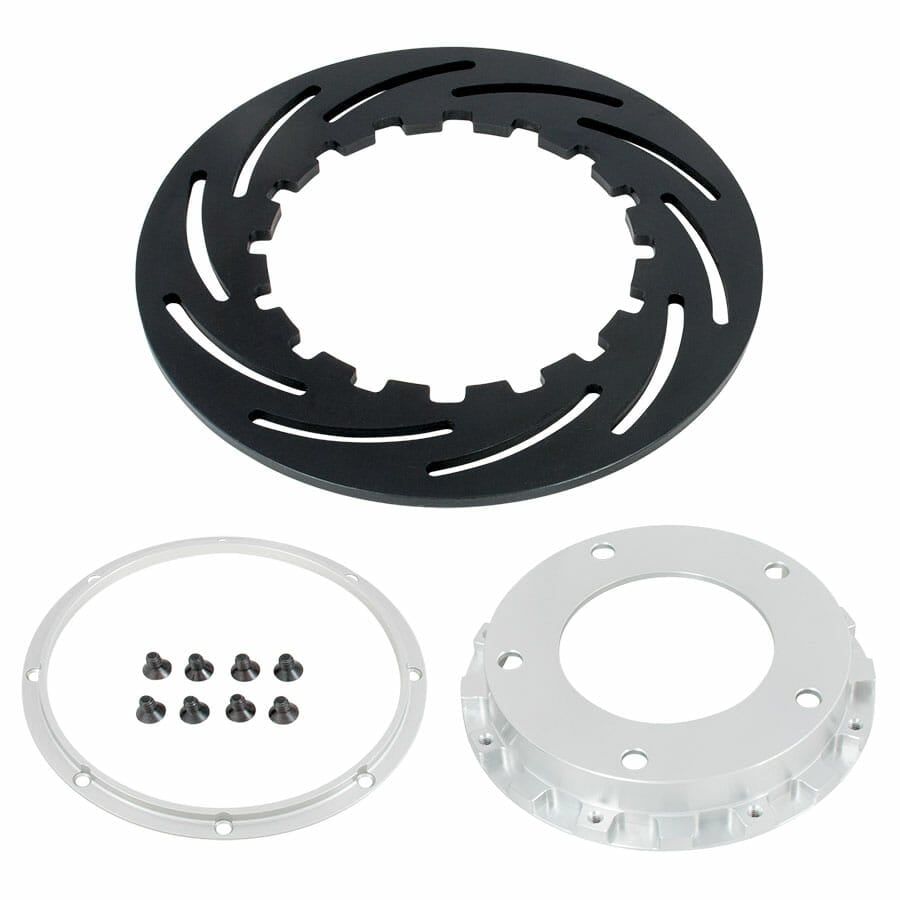

Strange 10″ 2 Piece Rotor – Right Hand Side. Fits Spindle Mount Wheels Requiring 1″ Offset. Designed Specifically For Drag Racing.
Application
Strange Aluminium Struts & Ultra Struts
Strange Adjustable Height Funny Car Spindles
Using 1-Piece Billet or Forged Spindle Mount Wheels
Left hand side assembly
Benefits
Mating cogs engage as the ring and FHSCS screws secure the assembly
Allows for axial and radial rotor growth as temperatures increase
Rotor warping and coning tendencies are drastically reduced
Supplied in Strange Brake Kit
B4595WC2 / B4596WC2 / B4597WC2 / B4600WC2
Steel Rotor
Internal cogs allow rotor to float
Allows for expansion variances between aluminium & steel
Slots reduce rotating weight and increase air flow
Aluminium Hat
2024-T351 billet aluminium
Reduces rotating weight
Cog & ring system secures rotor while allowing for thermal expansion
Eliminates crack formation common to other two piece designs
Dimensions
Rotor
10″ OD x .250″ thick
Discard at .215″
Hat
5.562″ OD x 5.312″ ID
.125″ thick face
.375″ holes on 4-3/4″ BC
Offset
1.00″ – Measured from outside face of hat to inner pad surface
Assembly Weight
3.6 Lbs
Additional information
| Weight | 2.0500 kg |
|---|---|
| Dimensions | 31.00 × 31.00 × 10.00 cm |
| Category list | |
| Brand | Strange |
