PROPORTIONING VALVE COMPACT KNOB STYLE, 1/8″ NPT
$111.79

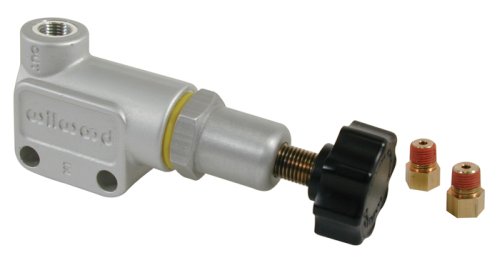

Optimize brake balance with precise pressure control using this compact proportioning valve. Its 1/8″ NPT knob-style design provides easy, adjustable brake bias for improved vehicle stability. Weighing just 0.264 kg and measuring 20.3 cm long, it fits seamlessly into tight brake system layouts.
Estimated arrival at CMP: 2-3 days.
After arriving at CMP the item will be shipped the same day or made available for collection.
*Image(s) for illustrative purposes only
Did you like this product? Add to favorites now and follow the product.
Description
The new generation of adjustable proportioning valves combines the latest refinements in manufacturing processes and materials to deliver precise pressure metering and unyielding strength from a compact and lightweight forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This adjustment lets you fine tune the front to rear braking balance by
proportionally decreasing the rear (or in some cases the front) brake line pressure. Can also be used to adjust individual front wheel braking in dirt track applications. Valves weigh only 5.2 ounces (knob), 6.1 ounces (lever), and have two .25″ side mounting holes spaced 1.00″ apart. Standard in and out ports are 1/8-27 NPT.
Additional information
| Weight | 0.2640 kg |
|---|---|
| Dimensions | 20.30 × 3.80 × 11.40 cm |
| Category list | |
| Brand | Wilwood |
