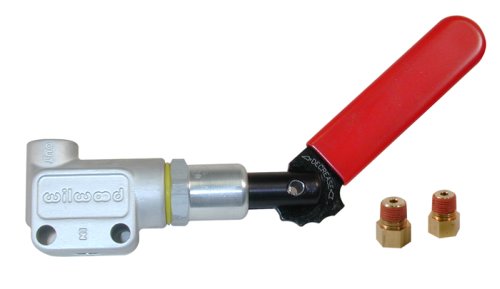

WB260-8420 Wilwood Proportioning Valve Compact Lever Style
$204.42
Ensure precise brake balance with the Wilwood Proportioning Valve Compact Lever Style, designed to optimize braking performance by adjusting front-to-rear brake bias. Its compact dimensions—19.40 cm length and lightweight 0.3240 kg—allow easy integration into tight spaces without adding bulk. Experience improved vehicle control and safety with this reliable, space-saving valve.
Estimated arrival at CMP: 2-3 days.
After arriving at CMP the item will be shipped the same day or made available for collection.
*Image(s) for illustrative purposes only
Did you like this product? Add to favorites now and follow the product.
Description
The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six pre-set points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever “clicks” into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25″ side mounting holes spaced 1.00″ apart. Inlet / outlet ports are 1/8-27 NPT.
Additional information
| Weight | 0.3240 kg |
|---|---|
| Dimensions | 19.40 × 2.90 × 14.00 cm |
| Category list | |
| Brand | Wilwood |
